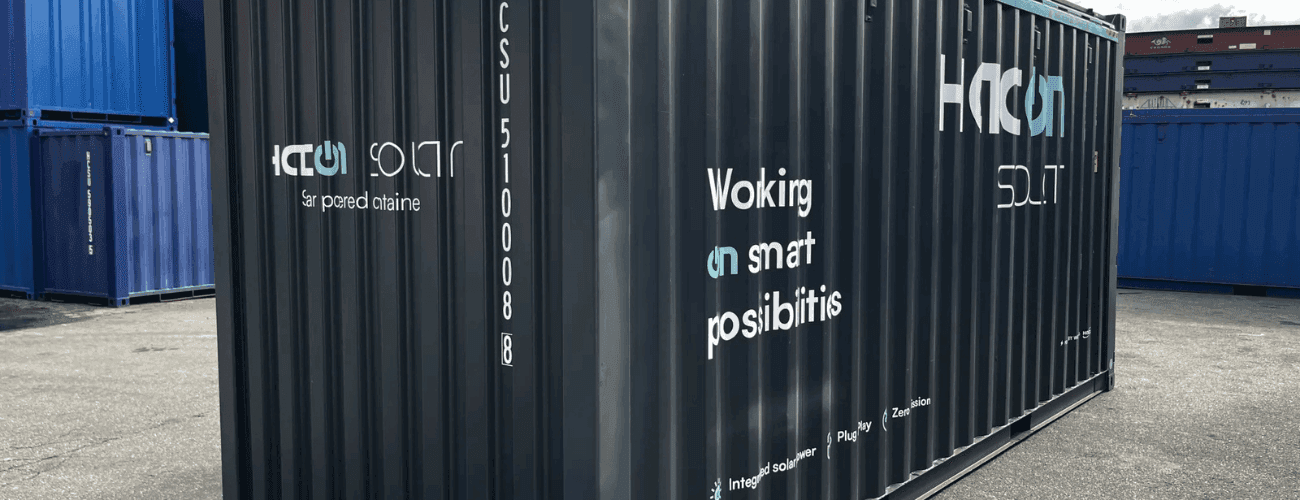

Specifications of the 20ft High Cube Solar Container
Are you interested in sustainable energy and emission-free container solutions? Then the Hacon Solar Container with integrated solar panels is definitely for you. This innovative container combines solar energy with a smart battery system, allowing you to work anytime, anywhere, without having to rely on a power grid. In this blog, we share all the specifications of the 20ft High Cube Solar Container, the first solar container with standard lighting!

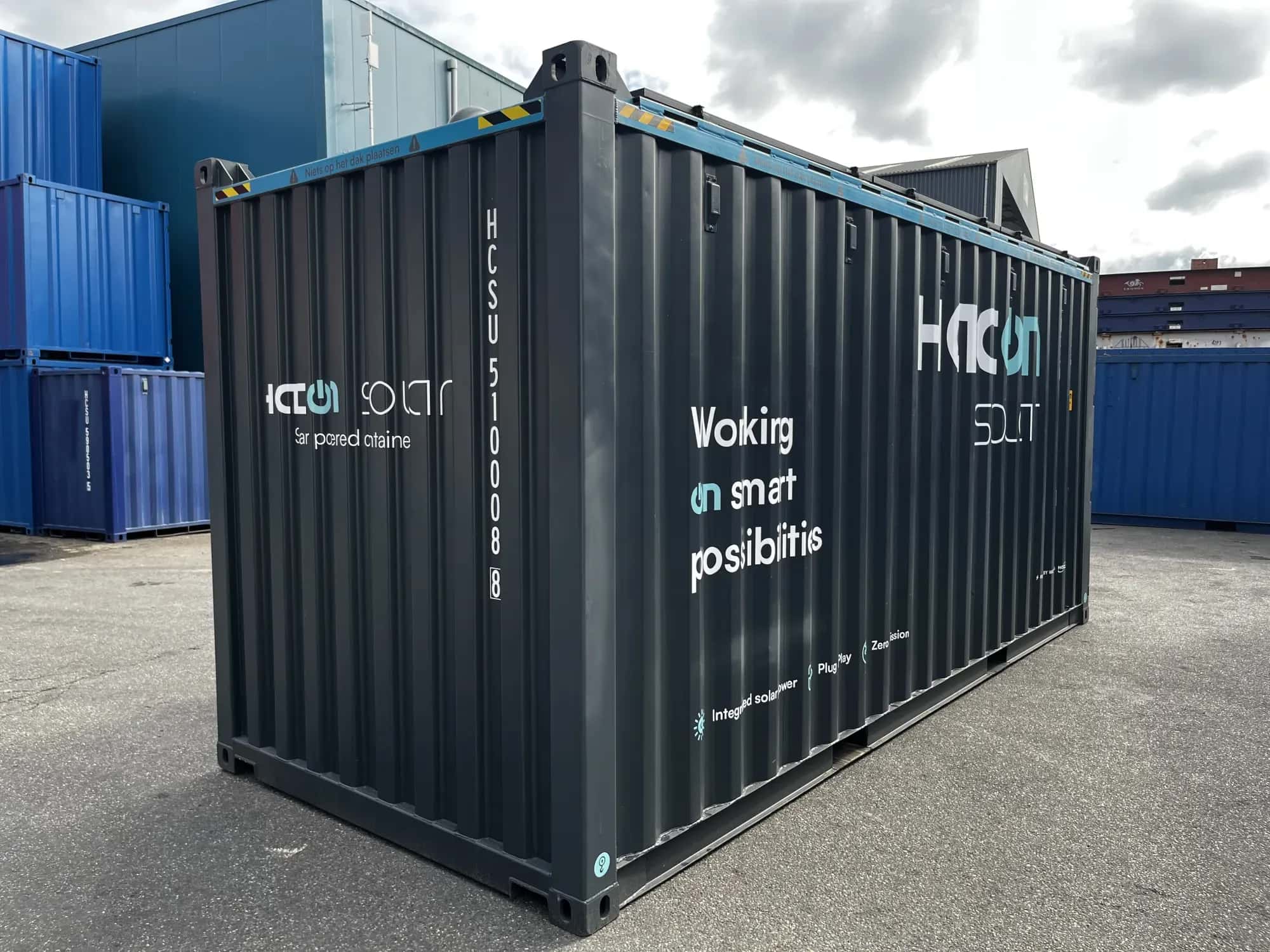

Dimensions of the container
The 20ft High Cube Solar Container is the first innovative container to see the light of day. This container is characterized by certain dimensions.
- External dimensions: (LxWxH) 6.058 x 2.438 x 2.896 mm
- Internal dimensions: (LxWxH) 5.898 x 2.352 x 2.589 mm
- Max. Gross: 30.480 KGS
- Tare: 2.240 KGS
- Payload: 28.240 KGS

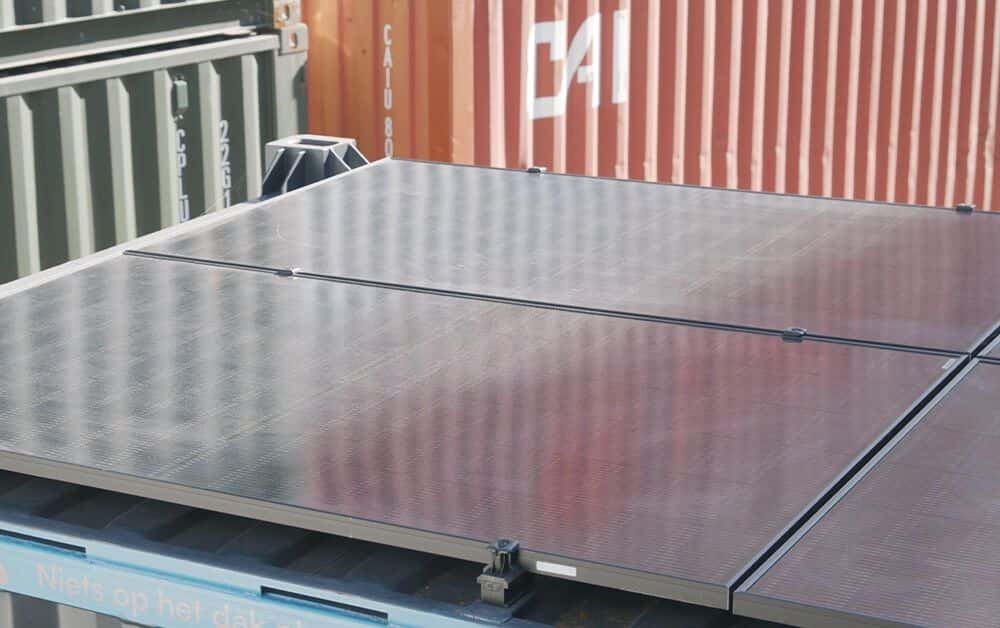

Integrated solar panels
We have integrated solar panels into the construction of the 20ft High Cube Solar Container. We have done this in such a way that the container is still stackable and easy to transport. With the solar panels, the container can capture solar energy anytime, anywhere.
A total of six solar panels are integrated into the container. What does this mean for you as a customer? 435 Wp per panel!
6 solar panels: 2.610 Wp

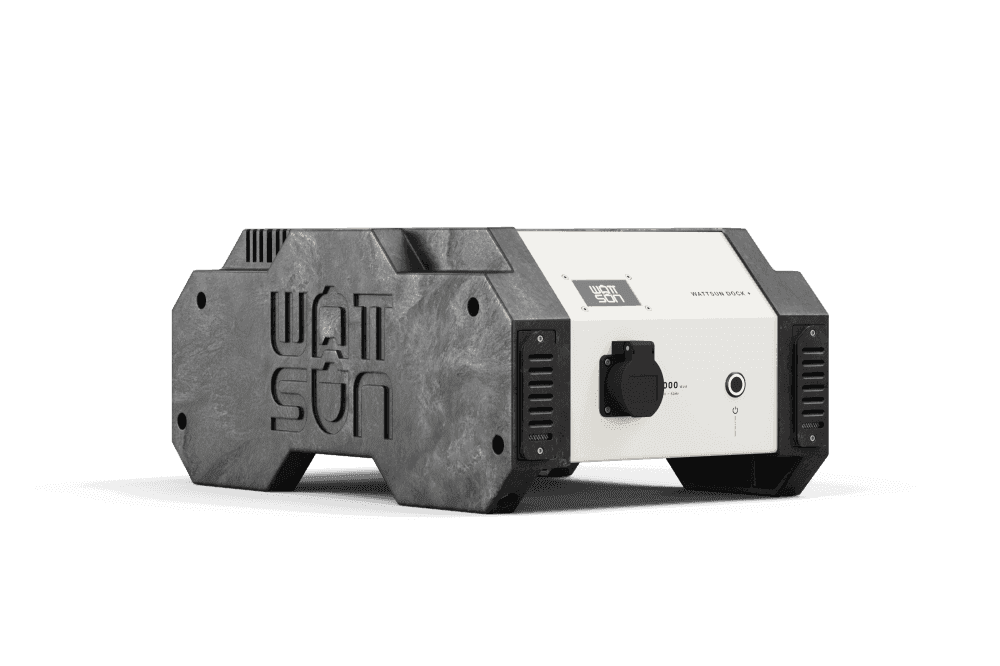

Wattsun Dock+
What makes the 20ft High Cube Solar Container so special, besides the integrated solar panels, is the smart battery system we have installed in the container. We opted for the Wattsun Dock+. This smart and user-friendly battery system allows you to set up your container anywhere and get started right away. You are no longer dependent on a power grid to carry out your work.
The Wattsun Dock+ also has a number of important specifications.
- Voltage: 220 - 240 Volt
- Frequency: 50 Hz
- Continuous power: 2000 Watt
- Peak power: ~2300 Watt 1 min.
- Start-up peak: ~3500 Watt 3 sec
- Weight: 18.2 kg
- Dimensions: 51 x 34 x 23 cm
- Cell technology: Lithium-lon
- Brand cell technology: Panasonic
- Battery capacity: 1400 Wh
- Nominal voltage: 51,8 Vdc
- Charging voltage: 58,8 Vdc
- Load capacity: 600 Watt (10A)
- Charging time: 2,5 hours
- Charging voltage Solar: 10-48 Vdc

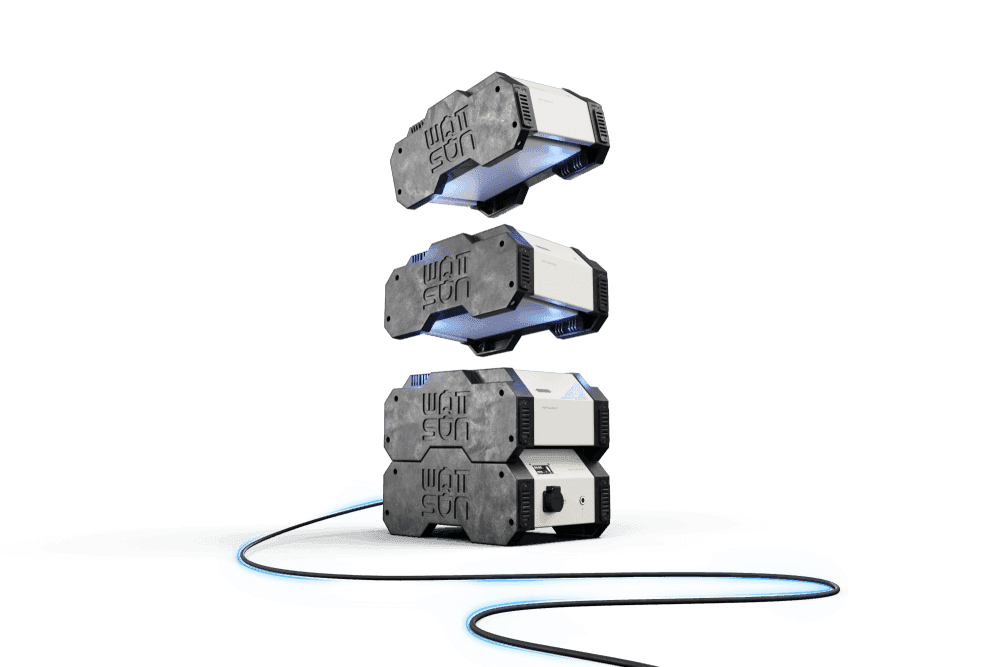

The Wattsun Dock+ can be expanded with Packs
The major advantage of the Wattsun battery system is that its capacity is stackable. By stacking Packs on the Dock, you can expand the capacity. This allows you to always meet the right energy demand.
The Wattsun Pack also has a number of important specifications.
- Weight: 15,2 kg
- Dimensions: 51 x 34 x 23 cm
- Number of cycles: >600
- Nominal voltage: 51,8 Volt
- Loading voltage: 58,8 Volt
- Load capacity: 360 Watt (6A)
- Charging time: 5 hours
- Cooling: Active cooling system for optimal service life
- Temperature protection: Upper and lower temperature protection
- Battery capacity: 1600 Wh
